Pressure Pump Systems
SCAIN DEMAND
SCA504 / SCA604 Self-Priming Constant Pressure Series
Combined SCA self-priming series for domestic and light commercial constant-pressure water supply.
SCA504SCA604
0.75 HP1.5 HP

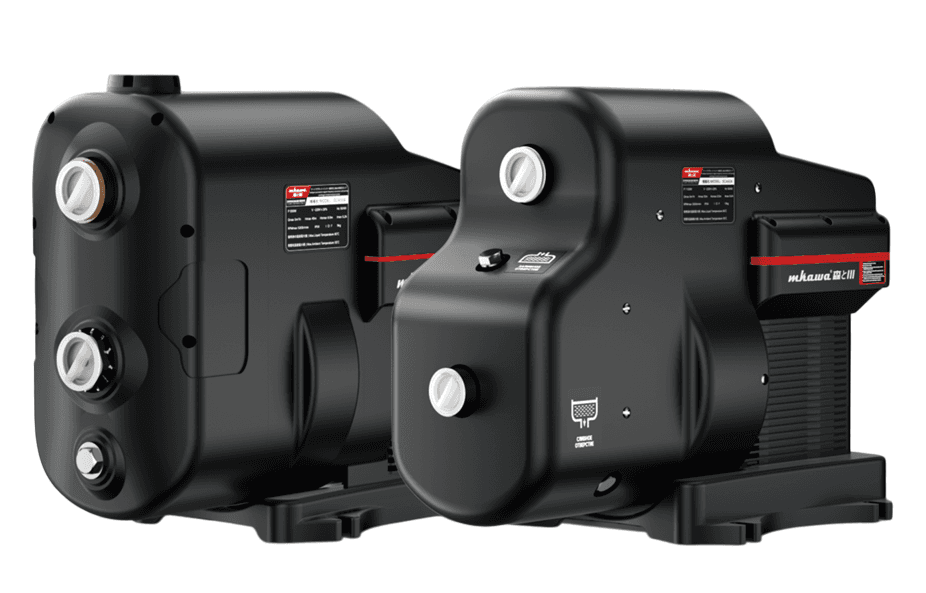

Product photos
Dual-model family for sizing flexibility
Shared architecture for easier deployment
Constant-pressure water-supply performance
Suitable for retrofit and new systems
Product overview
Key Specifications
- Series
- SCA504 / SCA604 dual model
- Control
- Intelligent constant-pressure control
- Frequency
- 50/60 Hz
Typical Applications
Domestic water supplyWhole-house pressure boostingRetrofit and new installations
Verified Performance Data
Maximum values transcribed from the supplied brochure or product sheet, including confirmed shared-platform data where identified. Select a pump from its full performance curve and site conditions, not from maximum values alone.
| Model | Max input power | Max head | Max flow |
|---|---|---|---|
| SCA504 | 550 W | 45 m | 5.0 m³/h(83 L/min) |
| SCA604 | 1100 W | 53 m | 6.0 m³/h(100 L/min) |

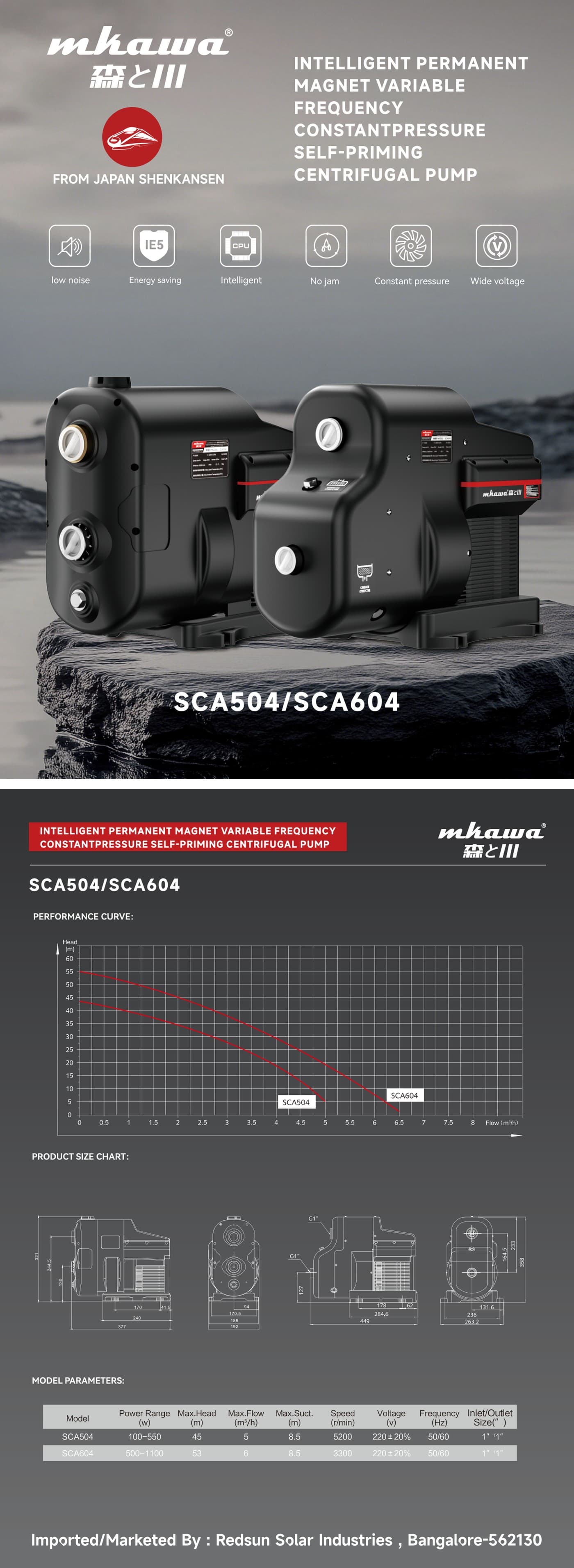

Product Brochure Pages
Open PDFExpand brochure preview
Compare pumps and plan your installation
Share your required flow, pressure, water source and installation location with our team. We can review model selection and provide a quotation for your application.
