BHM4-20SET / BHM5-40SET Pressure Pump Booster Series
Twin-pump booster series designed for stable domestic and light commercial water-supply pressure.
BHM4-20SETBHM5-40SET
2 HP3 HP
mkawa*Loading 3D model
AR on Android. iOS needs USDZ.
Product photos

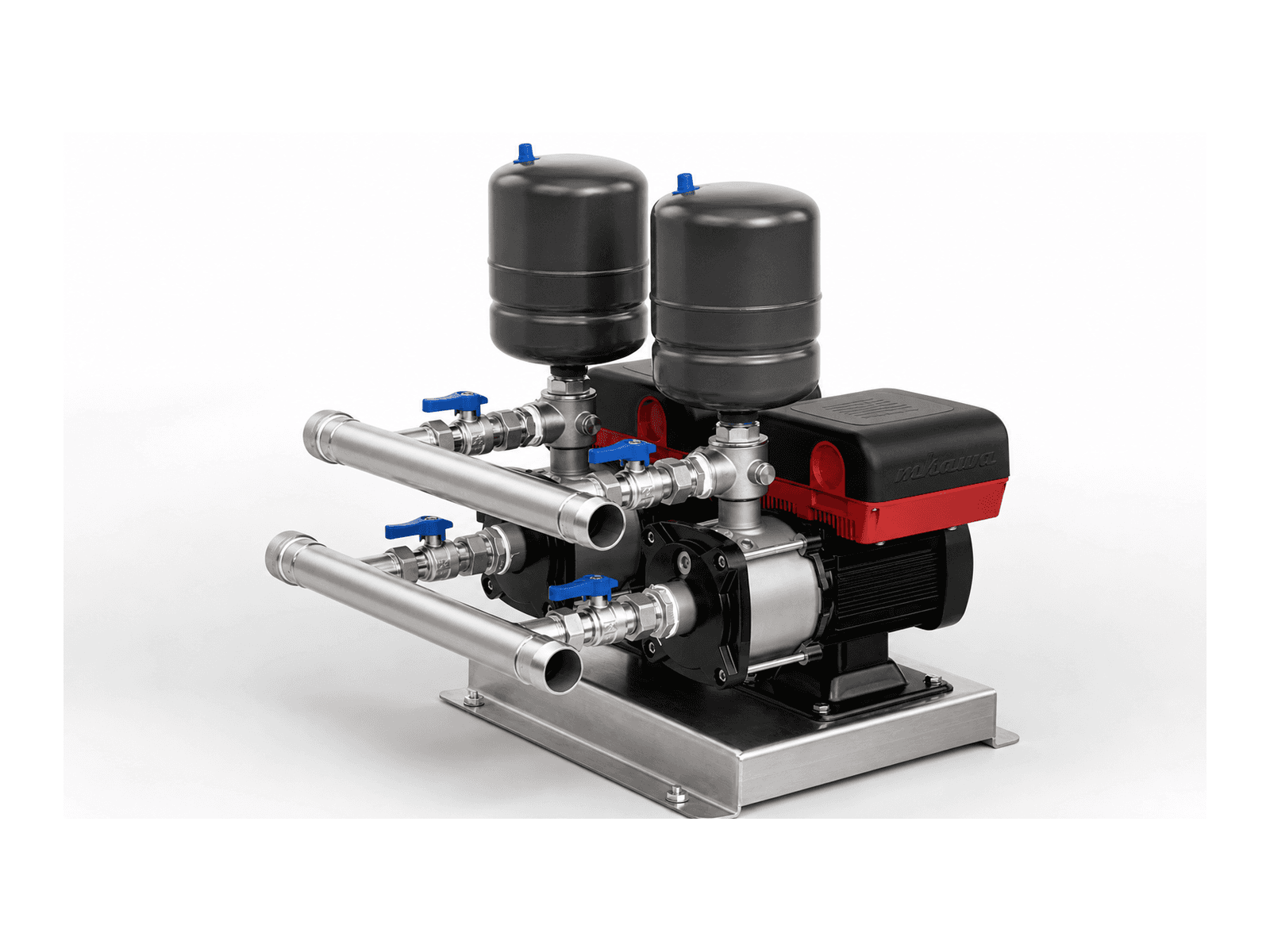

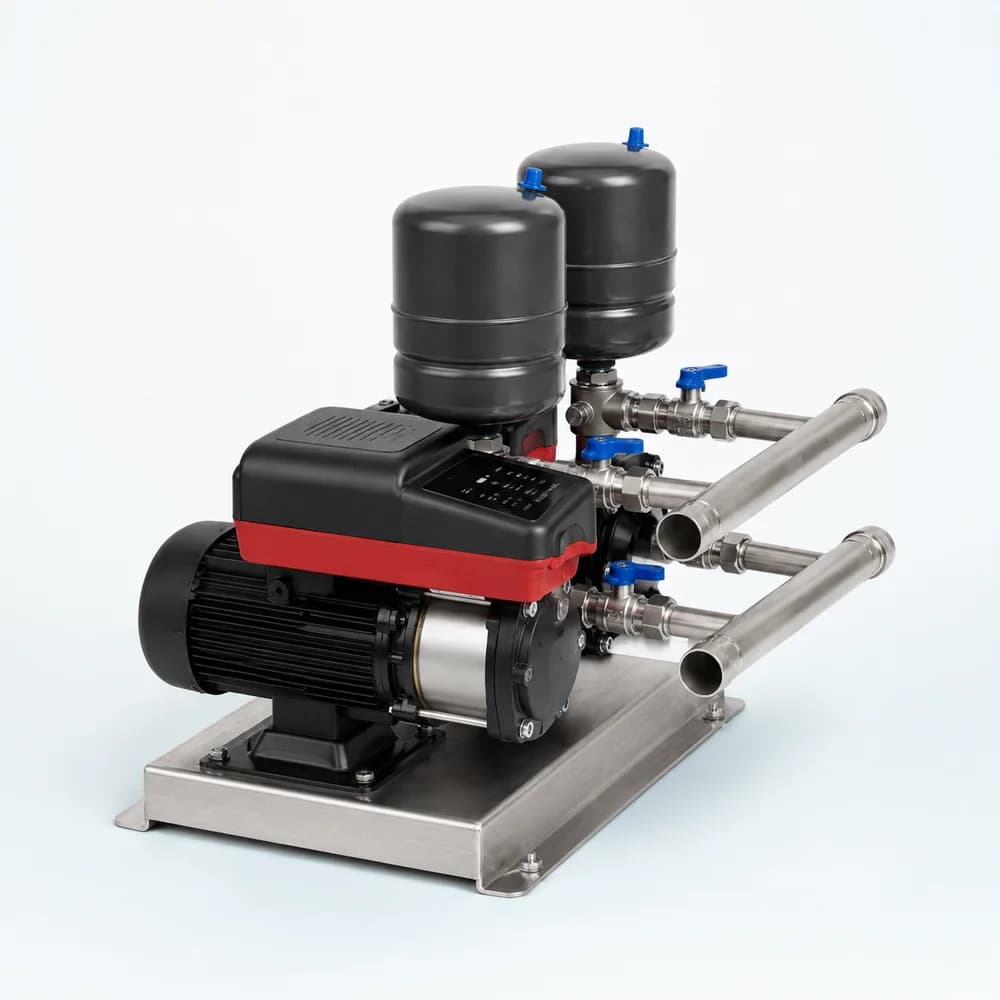

Twin-pump pressure-boosting assembly
Efficient permanent magnet control
Pressure-stable operation across load changes
Service-friendly integrated set design
Product overview
Key Specifications
- Control
- VFD intelligent pressure control
- Motor
- Permanent magnet IE5 class
- Frequency
- 50/60 Hz
Typical Applications
Domestic pressure boostingVillas and homesSmall commercial water supply
Verified Performance Data
Maximum values transcribed from the supplied brochure or product sheet, including confirmed shared-platform data where identified. Select a pump from its full performance curve and site conditions, not from maximum values alone.
| Model | Max input power | Max head | Max flow |
|---|---|---|---|
| BHM4-20SET | 1500 W | 35 m | 12.0 m³/h(200 L/min) |
| BHM5-40SET | 2200 W | 80 m | 16.0 m³/h(267 L/min) |

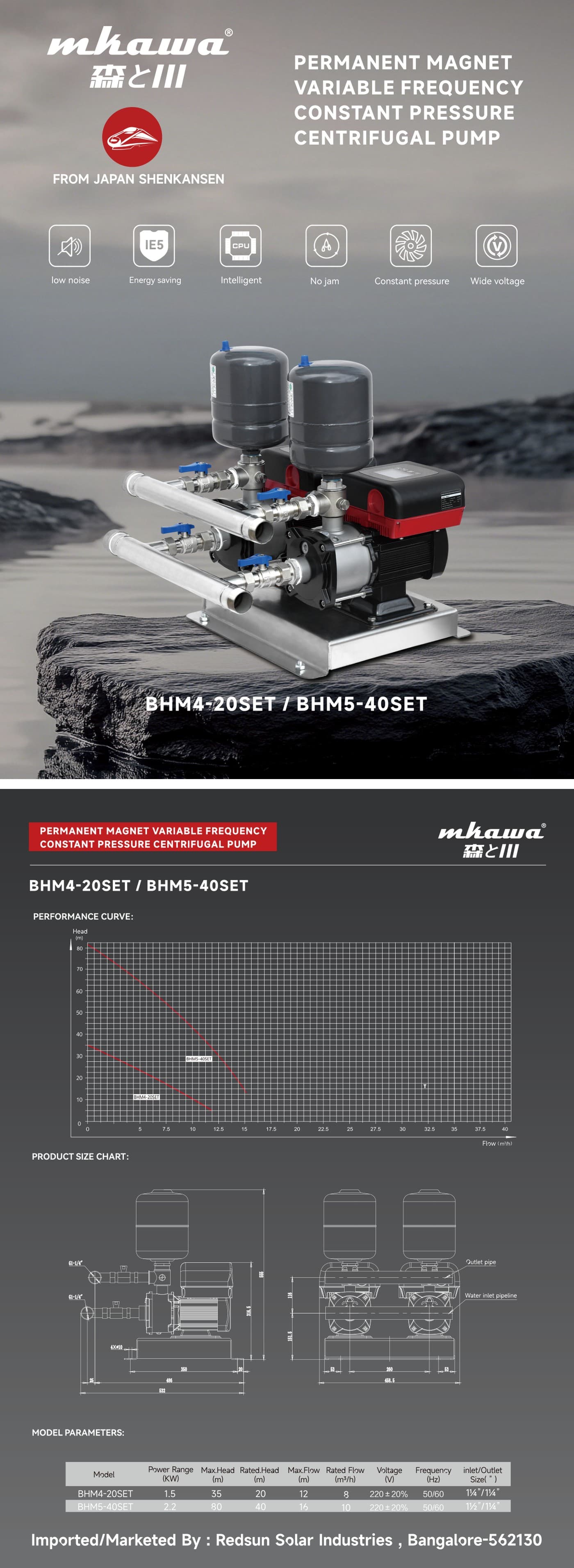

Product Brochure Pages
Open PDFExpand brochure preview
Compare pumps and plan your installation
Share your required flow, pressure, water source and installation location with our team. We can review model selection and provide a quotation for your application.
