Pressure Pump Systems
BHMIN DEMAND

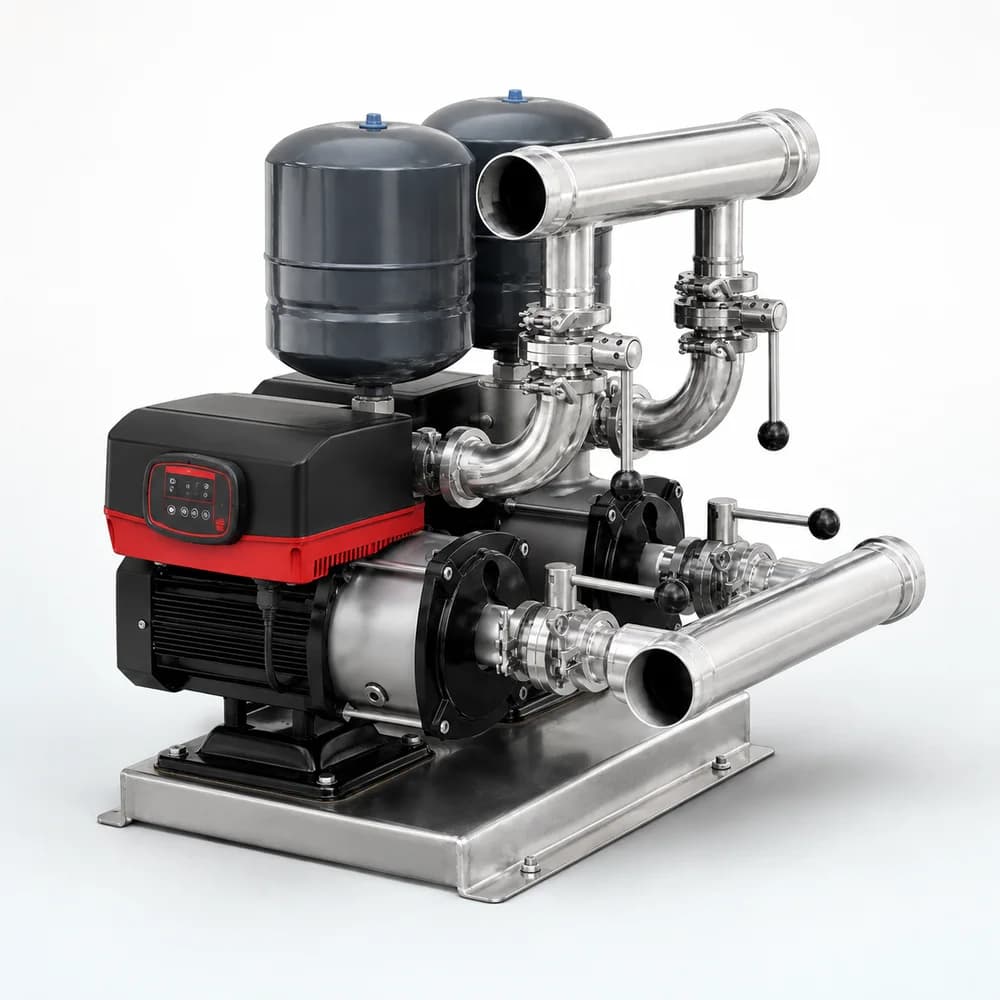

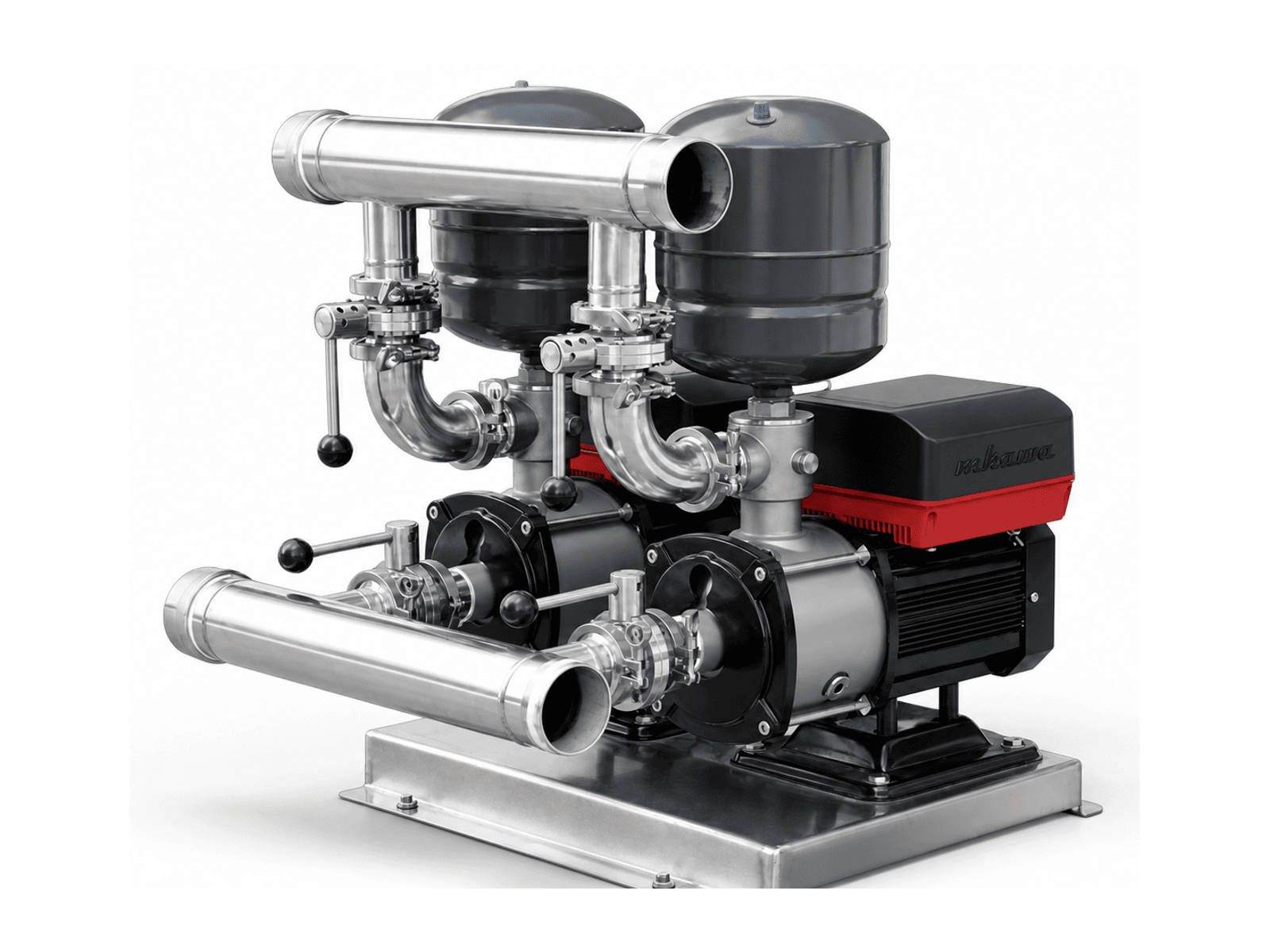

BHM8-55SET / BHM12-55SET Pressure Pump Booster Series
Higher-capacity twin-pump BHM booster configuration for water-supply pressure reliability.
BHM8-55SETBHM12-55SET
4 HP6 HP
mkawa*Loading 3D model
AR on Android. iOS needs USDZ.
Product photos
Supports larger pressure circuits
Low-noise and energy-conscious control
Consistent hydraulic response
Robust multi-scenario operation
Product overview
Key Specifications
- Control
- VFD intelligent pressure control
- Motor
- Permanent magnet IE5 class
- Frequency
- 50/60 Hz
Typical Applications
High-demand domestic boostingApartment water pressureCommercial water supply
Verified Performance Data
Maximum values transcribed from the supplied brochure or product sheet, including confirmed shared-platform data where identified. Select a pump from its full performance curve and site conditions, not from maximum values alone.
| Model | Max input power | Max head | Max flow |
|---|---|---|---|
| BHM8-55SET | 3000 W | 55 m | 32.0 m³/h(533 L/min) |
| BHM12-55SET | 4400 W | 55 m | 40.0 m³/h(667 L/min) |

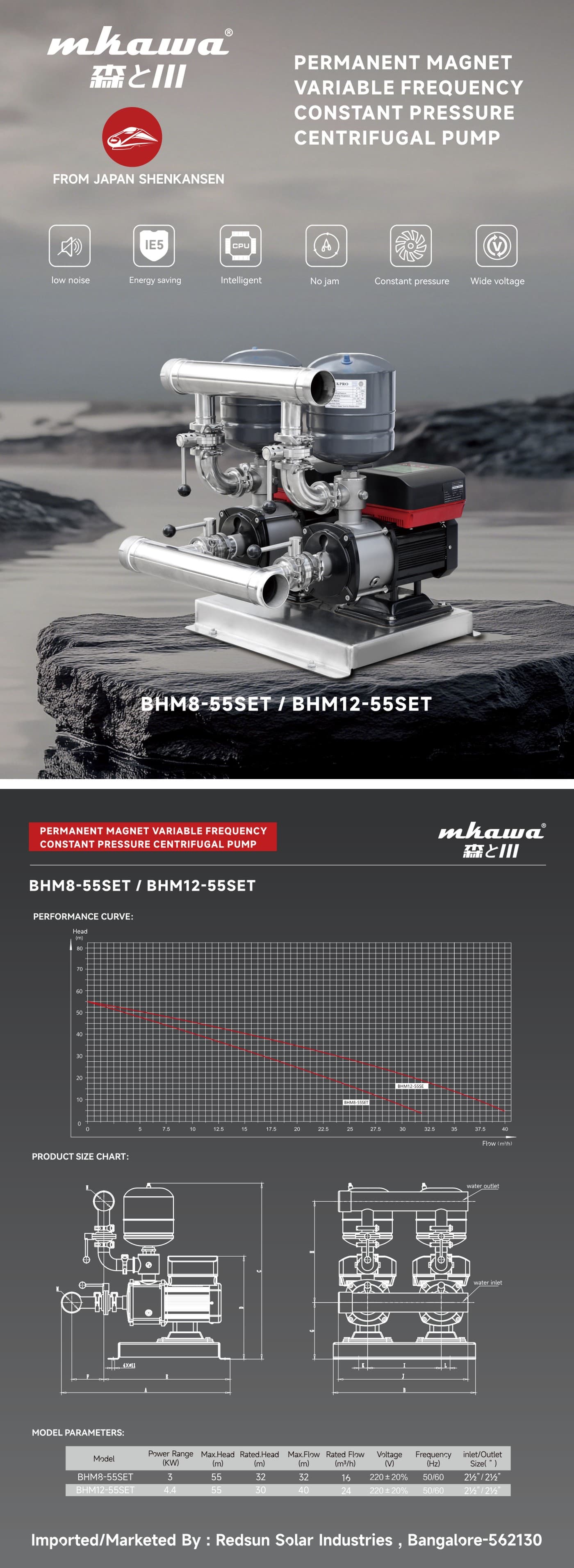

Product Brochure Pages
Open PDFExpand brochure preview
Compare pumps and plan your installation
Share your required flow, pressure, water source and installation location with our team. We can review model selection and provide a quotation for your application.
