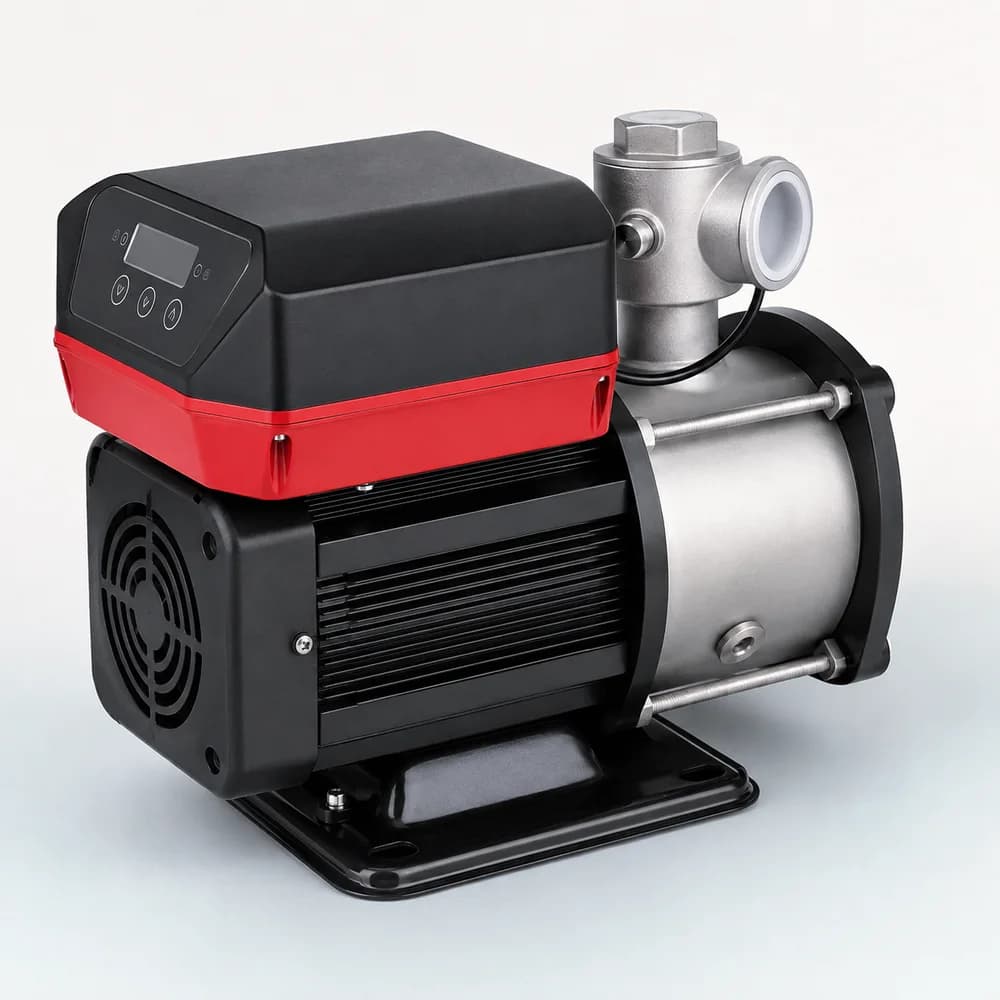

BHM VFD Pressure Pump Series
BHM VFD water pressure pump series with multi-capacity configurations for variable-demand water supply and pressure-stable operation.
BHM4-20BHM5-40BHM8-55BHM12-55
1 HP1.5 HP2 HP3 HP
mkawa*Loading 3D model
AR on Android. iOS needs USDZ.
Product photos
Wide model coverage for project fit
Intelligent VFD pressure control
Stable flow behavior across variants
Low-noise permanent magnet operation
Product overview
Key Specifications
- Control
- Variable frequency (VFD)
- Motor
- Permanent magnet IE5 class
- Frequency
- 50/60 Hz
Typical Applications
Water pressure boostingResidential and commercial supplyIntegrated pressure tank systems
Verified Performance Data
Maximum values transcribed from the supplied brochure or product sheet, including confirmed shared-platform data where identified. Select a pump from its full performance curve and site conditions, not from maximum values alone.
| Model | Max input power | Max head | Max flow |
|---|---|---|---|
| BHM4-20 | 750 W | 35 m | 6.0 m³/h(100 L/min) |
| BHM5-40 | 1100 W | 80 m | 8.0 m³/h(133 L/min) |
| BHM8-55 | 1500 W | 55 m | 16.0 m³/h(267 L/min) |
| BHM12-55 | 2200 W | 55 m | 20.0 m³/h(333 L/min) |

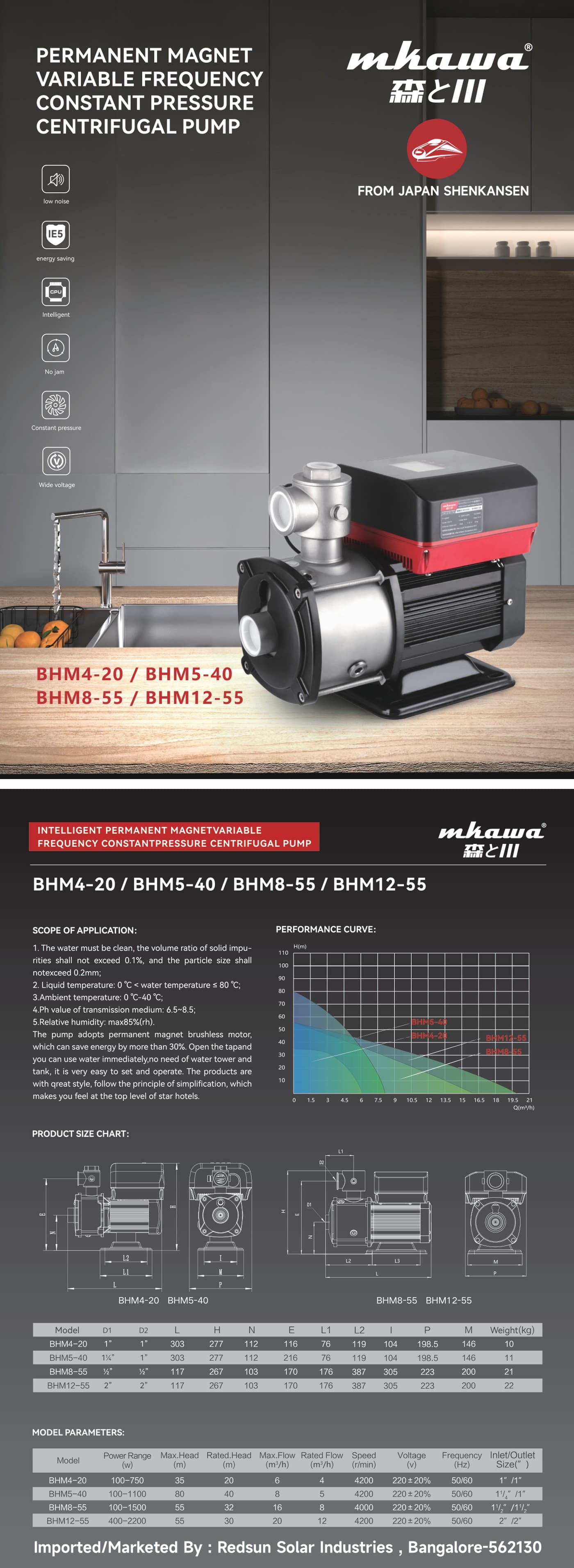

Product Brochure Pages
Open PDFExpand brochure preview
Compare pumps and plan your installation
Share your required flow, pressure, water source and installation location with our team. We can review model selection and provide a quotation for your application.
