HVAC & Circulation
Reliable circulation pump for heat pumps, hot water, and heating systems.
Stable circulation flow
Low noise shield motor
Compact design
Long operating life

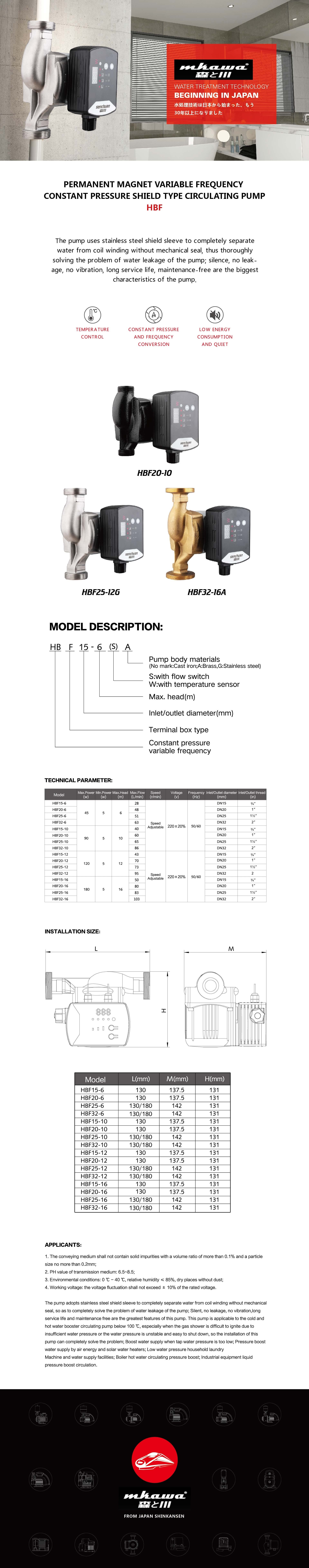

Product overview
Maximum values transcribed from the supplied brochure or product sheet, including confirmed shared-platform data where identified. Select a pump from its full performance curve and site conditions, not from maximum values alone.
| Model | Max input power | Max head | Max flow |
|---|---|---|---|
| HBF15-6 | 45 W | 6 m | 1.7 m³/h(28 L/min) |
| HBF20-6 | 45 W | 6 m | 2.9 m³/h(48 L/min) |
| HBF25-6 | 45 W | 6 m | 3.1 m³/h(51 L/min) |
| HBF32-6 | 45 W | 6 m | 3.8 m³/h(63 L/min) |
| HBF15-10 | 90 W | 10 m | 2.4 m³/h(40 L/min) |
| HBF20-10 | 90 W | 10 m | 3.6 m³/h(60 L/min) |
| HBF25-10 | 90 W | 10 m | 3.9 m³/h(65 L/min) |
| HBF32-10 | 90 W | 10 m | 5.2 m³/h(86 L/min) |
| HBF15-12 | 120 W | 12 m | 2.6 m³/h(43 L/min) |
| HBF20-12 | 120 W | 12 m | 4.2 m³/h(70 L/min) |
| HBF25-12 | 120 W | 12 m | 4.4 m³/h(73 L/min) |
| HBF32-12 | 120 W | 12 m | 5.7 m³/h(95 L/min) |
| HBF15-16 | 180 W | 16 m | 3.0 m³/h(50 L/min) |
| HBF20-16 | 180 W | 16 m | 4.8 m³/h(80 L/min) |
| HBF25-16 | 180 W | 16 m | 5.0 m³/h(83 L/min) |
| HBF32-16 | 180 W | 16 m | 6.2 m³/h(103 L/min) |
Share your required flow, pressure, water source and installation location with our team. We can review model selection and provide a quotation for your application.
